Maia ESP32-S2 DevBoard

The Maia Board is a complete and easy-to-use toolkit for testing the Espressif ESP32-S2 SoC Microcontroller. The architecture of Maia allows entry level users and makers to access all the features of the microcontroller and provides expert firmware programmers a versatile platform for immediate developing and fast prototyping.

Features Overview

• Espressif ESP32-S2 System-on-Chip
  • Cpu: Xtensa Core LX7 up to 240MHz
  • Cpu: RISC-V IMC usable as Ultra Low Processor
  • On-chip 320KB SRAM
  • 4MB FLASH
  • Wifi IEEE 802.11 b/g/n
  • 802.11mc FTM (Time of Flight ranging)
  • On-chip cryptographic accelerators
• Programmable switch off logic
• 1 RGB led + 1 programmable Power/charging led
• Lipo Battery charger
• Micro USB port for on-chip USB OTG and USB programming
• USB-C port for programming/debugging
• Switch on button with programmable logic
• On-board Pcb Antenna
• Breadboard-friendly Header pins (only 1 row needed)
• JTAG port
• Playground area for maker's experiments
• Measures 59mm x 48mm x 5mm (2.32" x 1.89" x 0.2") without headers soldered
• Plastic enclosure kit available to make it portable



Where to buy it

---

Resources

---

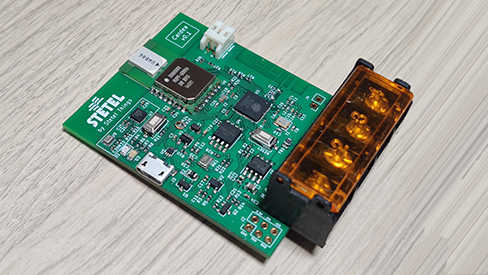

Cardea ESP32-S2 Motor Control Board

Cardea is a development board based on ESP32-S2, with DC motor control and UWB transceiver. Ideal i.e. for developing a keychain that open/closes at distance enabled door locks and for many more applications.

Features Overview

• Espressif ESP32-S2 System-on-Chip
  • Cpu: Xtensa Core LX7 up to 240MHz
  • Cpu: RISC-V IMC usable as Ultra Low Processor
  • On-chip 320KB SRAM
  • 4MB FLASH
  • Wifi IEEE 802.11 b/g/n
  • 802.11mc FTM (Time of Flight ranging)
  • On-chip cryptographic accelerators
• DW1000 Ultra Wideband transceiver module
• H bridge motor driver IC
• Accelerometer
• Barometer
• MEMS i2S Microphone
• LiPo Battery Charger
• Battery voltage measurement circuit
• Micro USB port for on-chip USB OTG and USB programming
• On-board Pcb Antenna
• 1 RGB led + 1 Power/charging led
• User and boot button
• Reset button
• Measures 67mm x 48mm x 23mm (2.63" x 1.89" x 0.9")
